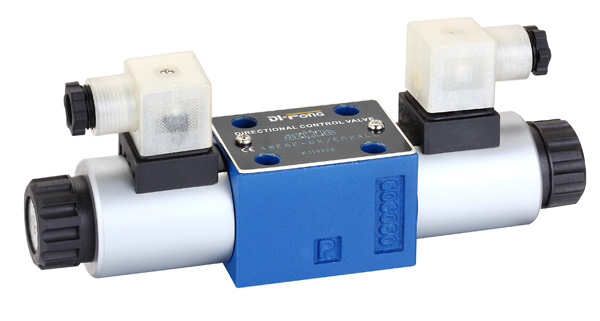

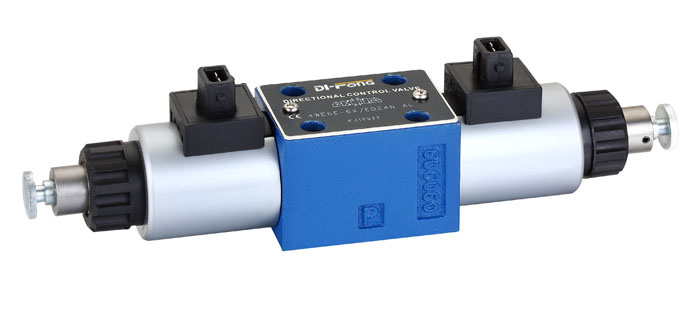

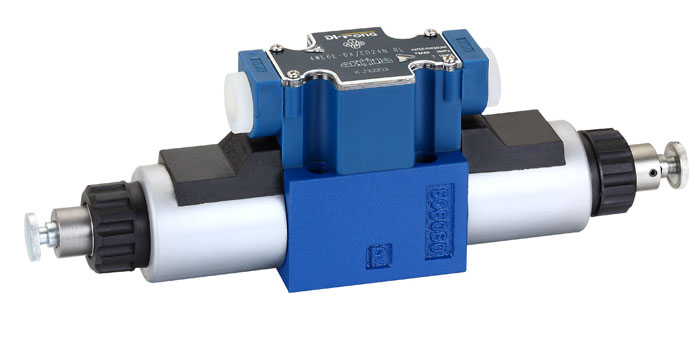

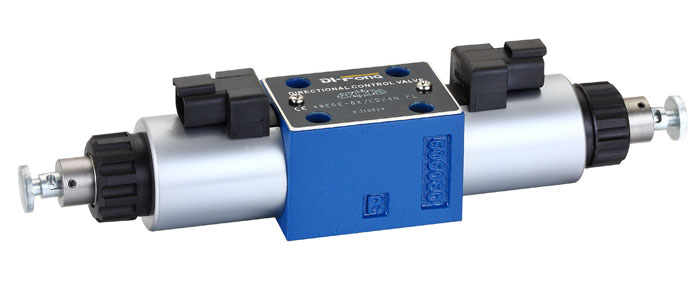

- Rexroth 4WE6 type solenoid directional valve, with DIN, AMP Junior-timer, two leads and deutsch type socket
- description
- Product Image
- Feedback
General data
Mounting position
anywhere
Operating temperature ℃
-30~+50（nitrile rubber seal）
-20~+50（rubber seal）
weight
Single solenoid valve kg
1.45
Double solenoid valve kg
1.95
Hydraulic Data
Maximum operating voltage fluid port P、A、B Mpa
31.5
Hydraulic fluid port Mpa
21（DC）：16（AC)
When working pressure exceeds the allowable pressure, valves with the sign bit A,B must use T as oil drain port
Maximum flow rate 1/min
80(DC); 60(AC)
Flux areas （when in the median）
Type Q
mm2
About 6% of the nominal cross-sectional area
Type W
mm2
About 6% of the nominal cross-sectional area
Hydraulic oil
1、suitable for nitrile rubber and fluoro rubber seal
2、Fluoro seal only
Mineral oil（HL,HLP) by DIN51 524
Rapid biological solution oil by VDMA24 568
HETG 1）；
HEPG 2）;HEES 3）
The oil temperature range ℃
-30~+80（nitrile rubber seal）
-20~+80（rubber seal）
Viscosity range mm2/s
2.8-500
Oil cleanliness
The highest oil pollution level by NASI1639 Class 9
recommend minimum filter filtration precision β10≧75
Hydraulic data
Voltage category
DC
AC（50HZ）
Supply voltage V
12、24、48、110、220
110 220
Allowable voltage tolerance ％
+10~ －15
+10~ —15
Power consumption W
30
-
Holding current A
-
0.17（220V）
Starting current A
-
0.72（220V）
Working system ED％
100
100
Reversing time ms
125~145
10~20
Resetting time ms
100~250
15~40
Switching time times/h
≦15000
≦7200
Protection class by DIN 40050
IP65（AMP:IP66)
（Deutsch:IP69K)
Maximum coil temperature ℃
135℃(class B）
180℃(Class H）
\
