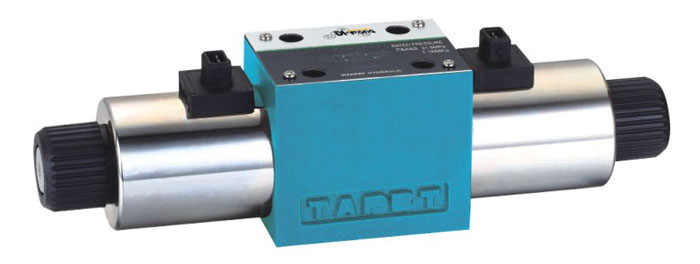

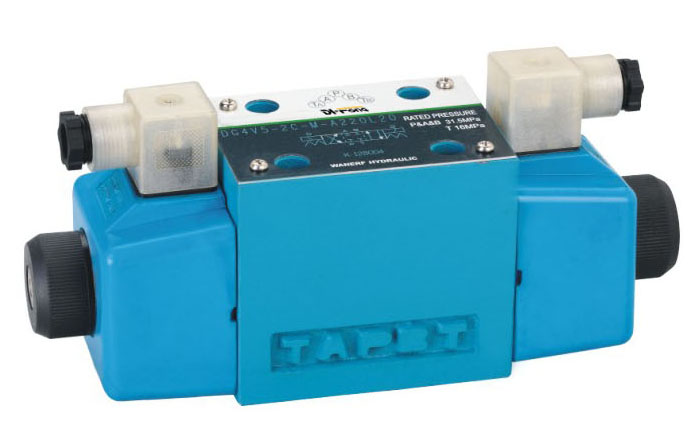

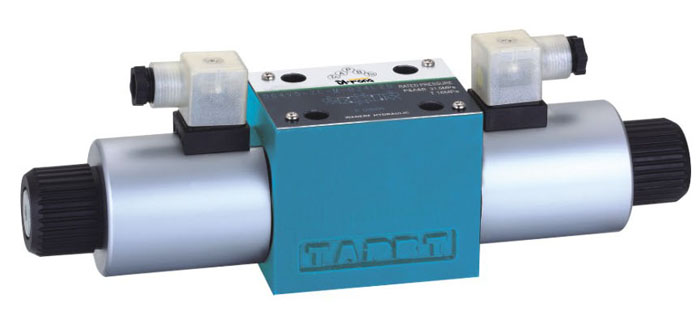

- Vickers DG4V5 type solenoid directional valve. DIN type,deutsch type, AMP Junior-timer type,and two lead wires type socket
- description
- Product Image
- Feedback
General Data
The total weight of one solenoid valve（with two solenoids）
㎏
DC: 6.55 AC:5.7
The total weight of one solenoid valve （with one solenoid）
㎏
DC: 5.00 AC:4.2
Installation site
Optional position
Operating temperature
℃
-20~+50(adopt NBR seal ring )
Hydraulic Data
Maximum working oil pressure
Oil port P、A and B
MP a
31.5
The highest dynamic oil pressure T cavity can bear
MP a
16
The highest static oil pressure T cavity can bear
MP a
16
Rated flow
1/min
80
Maximum flow
1/min
120
Liquid medium
Mineral hydraulic oil, Phosphate hydraulic oil
The oil temperature range
℃
-20~+80
The oil cleanliness
ISO4572:β10≥75NAS1638：Class 9
Electrical Data
Voltage category
DC
AC
RAC(coil with a rectifier component)
Duty cycle
ED
100％
Allowed voltage fluctuation range
％
-10~+10
The reserving and resetting time
ms
On:160 off:120
on:25 off:30
on:160 0ff: along with the change of phase angle when electric disconnects
Coil insulation class
Classs B
Class H
Class B
The maximum operating temperature coil allowed
℃
135
180
135
Coil weight
㎏
1.0
0.7
1.0
voltage
V
12
24
110
220
Power rate
Hz
50
50
50/60
50/60
Power consumption
W
38
38
38
40
40
40
40
Coil resistance（20℃）
ohm
38
15.2
319
28
55
59.5
238
Operating current（20℃）
A
3.15
1.58
0.35
0.22
0.42
0.47
0.24
