Z2S Series Modular Type Hydraulic Control Check Valve
  • Z2S series modular type hydraulic control check valve, superposition type hydraulic valve, modular valve

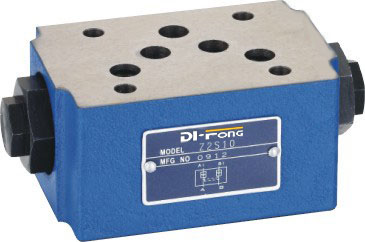

  • Product picture.jpg

                     Z2S6.jpg                                   Z2S10.jpg

    Ordering details.jpg

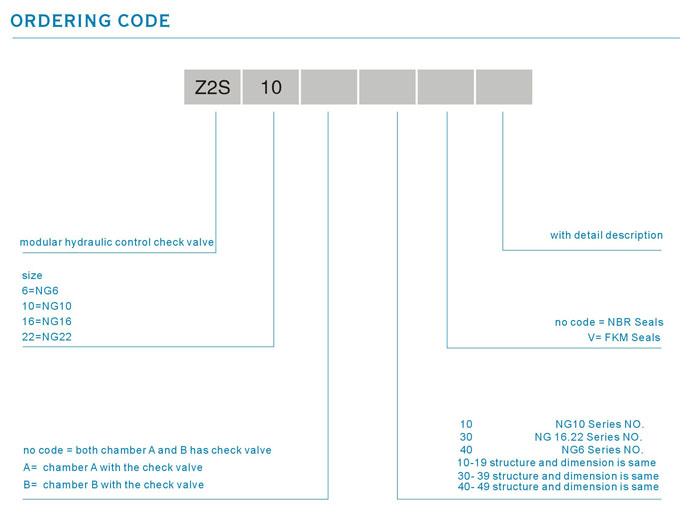

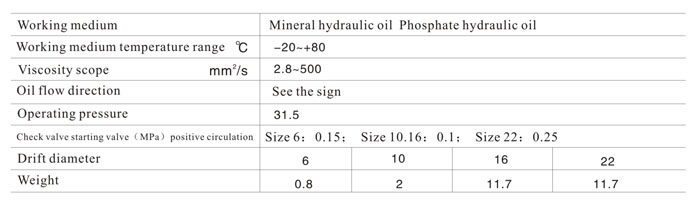

    ordering code.jpgTechnical data.jpgdata.jpg

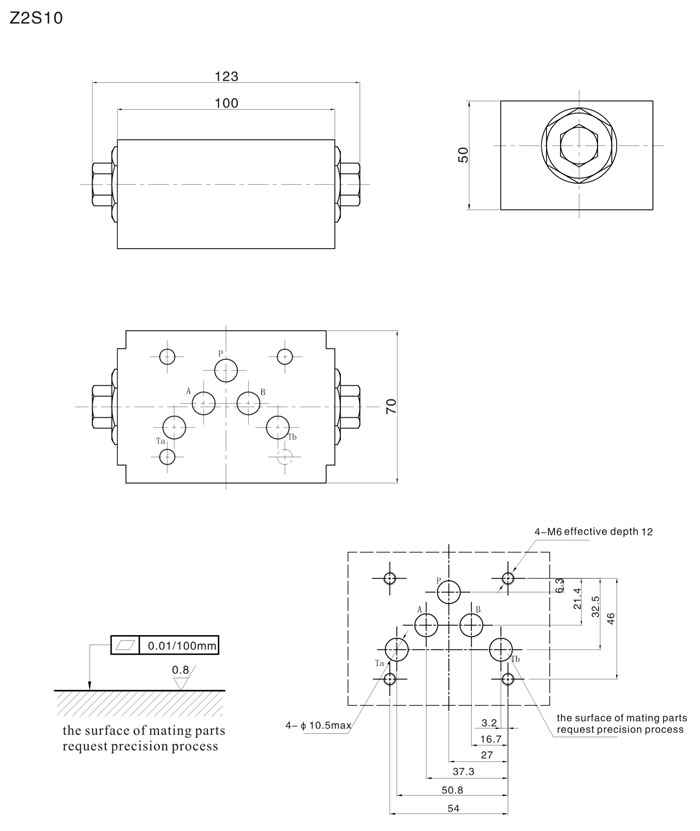

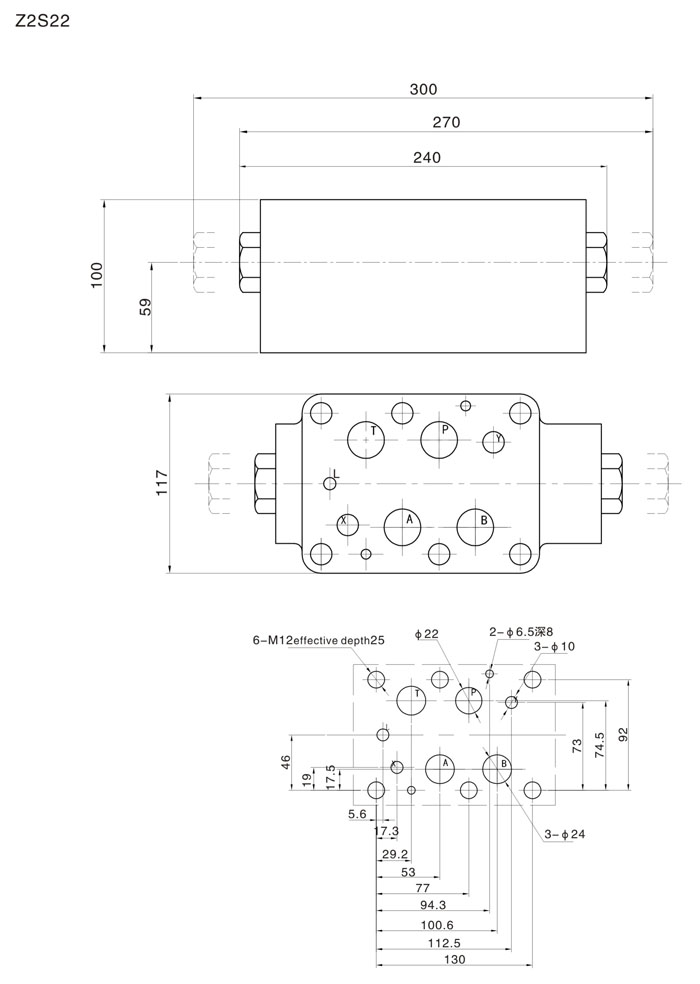

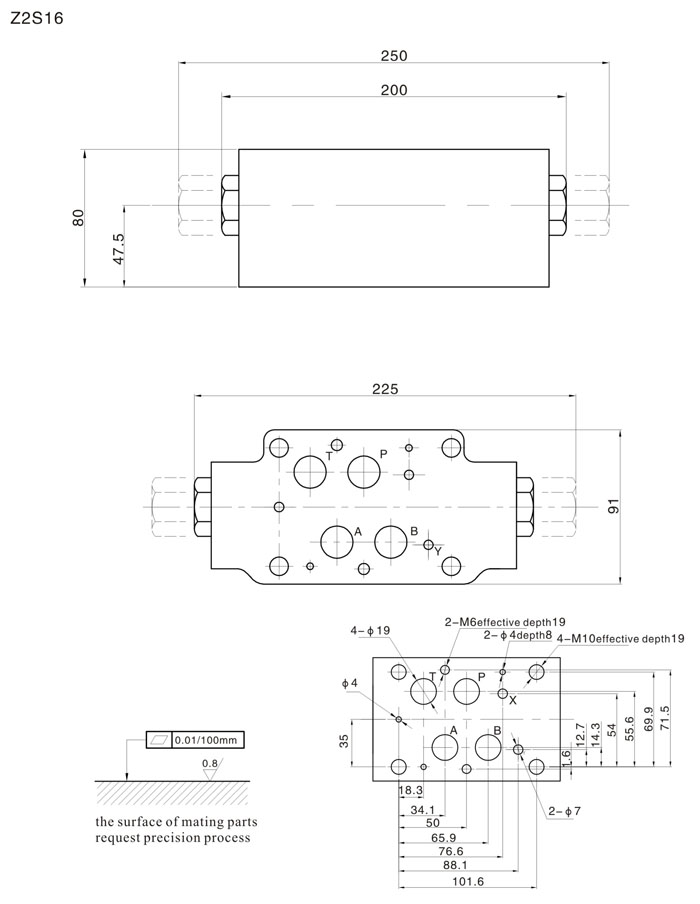

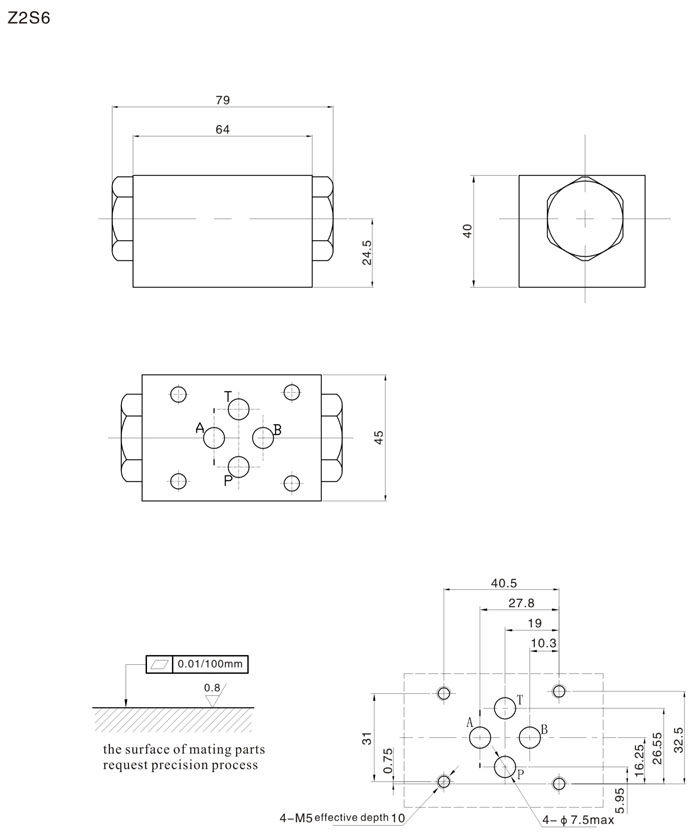

    Unit dimension.jpg

    Z2S6 dimension.jpgZ2S10 dimension.jpgZ2S16 dimension.jpgZ2S22 dimension.jpg


  •
