Z2FS series modular check valve, superposition hydraulic valve, modular valve
Z2FS series modular check valve, superposition hydraulic valve, modular valve
Z2FS series modular check valve, superposition hydraulic valve, modular valve
Z2FS series modular check valve, superposition hydraulic valve, modular valve
Z2FS Series Modular Type Throttle Check Valve
  • Z2FS series modular type throttle check valve, superposition type hydraulic valve, modular valve

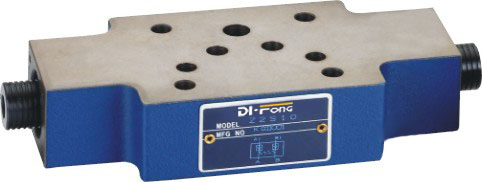

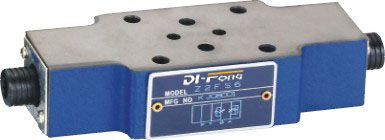

  • Z2FS6.jpgZ2FS10.jpg

    Z2FS型叠加式单向节流阀 600x.jpg

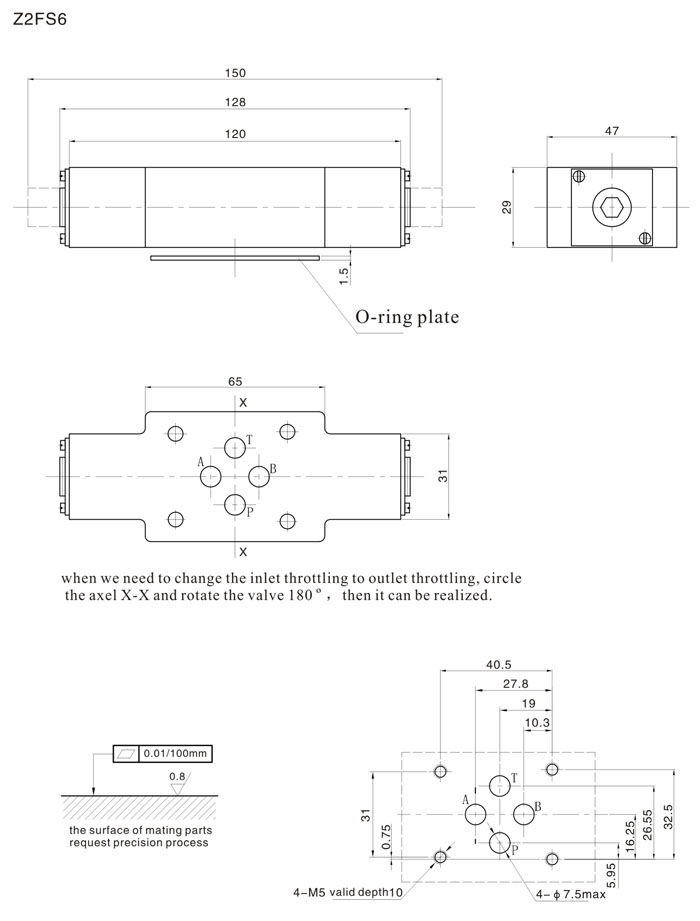

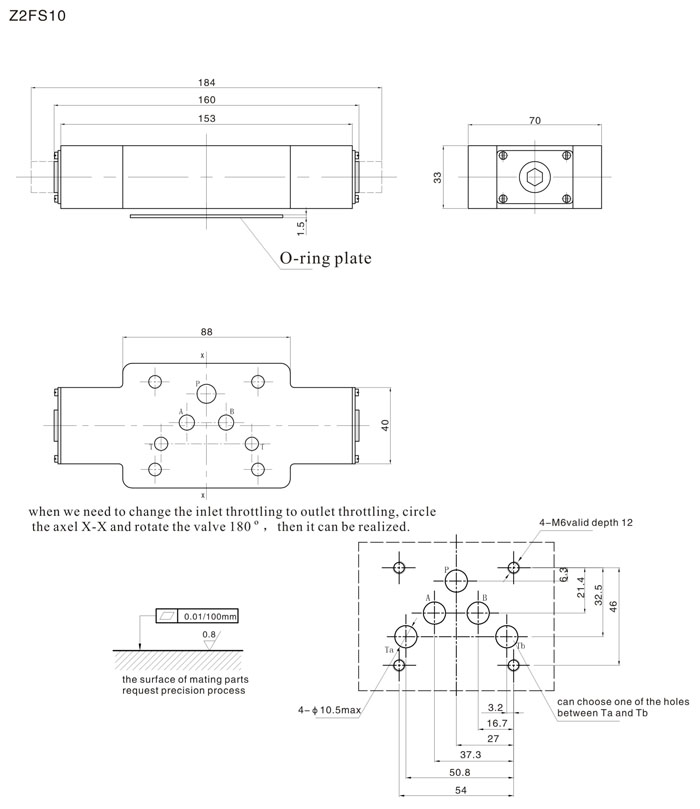

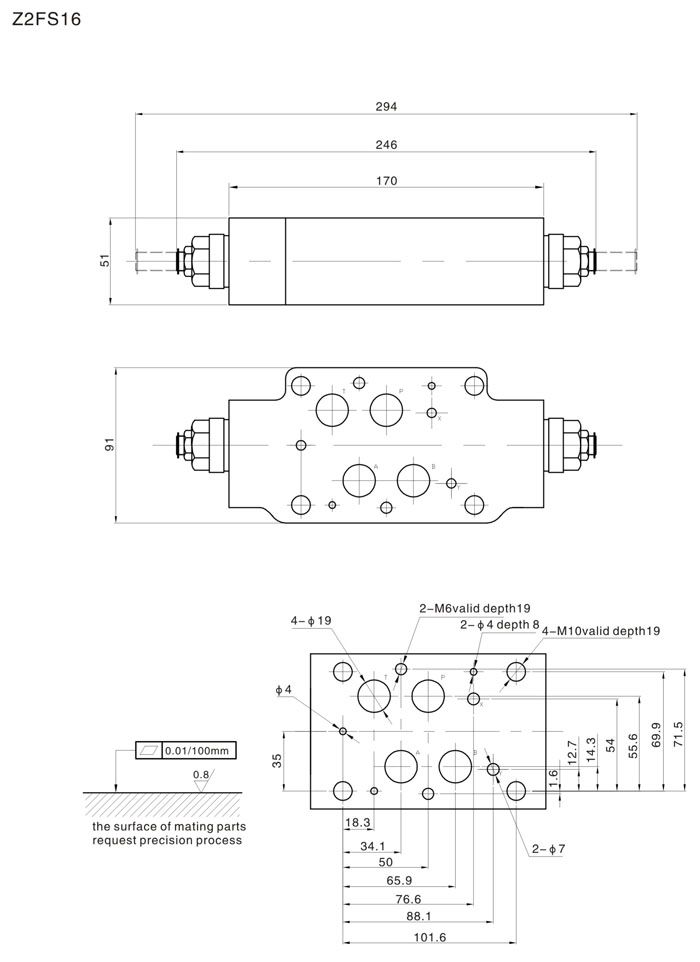

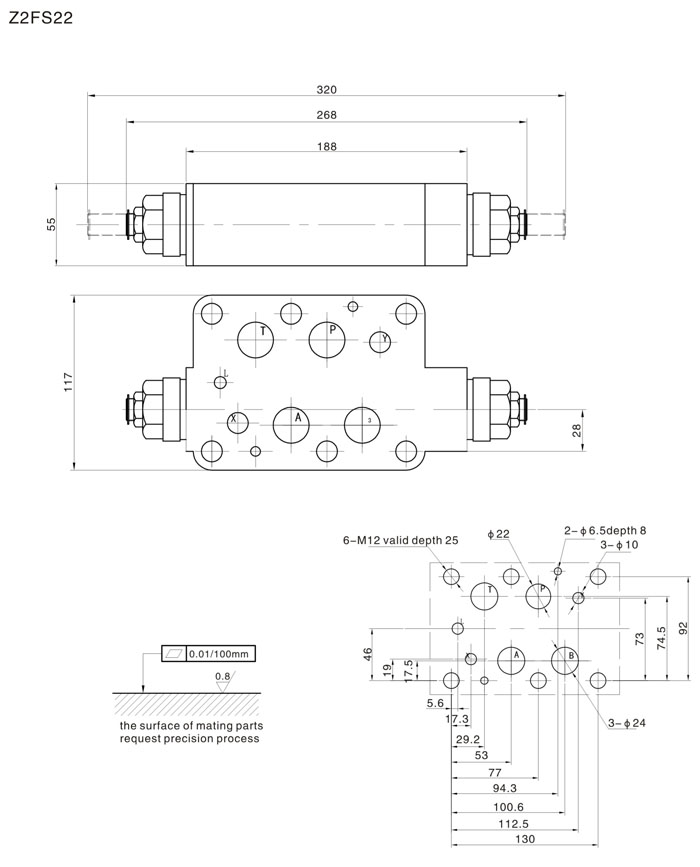

    Z2FS6 Dimension.jpgZ2FS10 Dimension.jpgZ2FS16 dimension.jpgZ2FS22 Dimension.jpg

  •

  • Details Inquiry
Details Inquiry
