DA/DAW Series Pilot Operated Unloading Valves
  • DA/DAW series pilot operated unloading valves, DA10/DAW10/DA20/DAW20/DA30/DAW30, DA-30, DA-30,DA-L50,DAW-30, DAW-L50

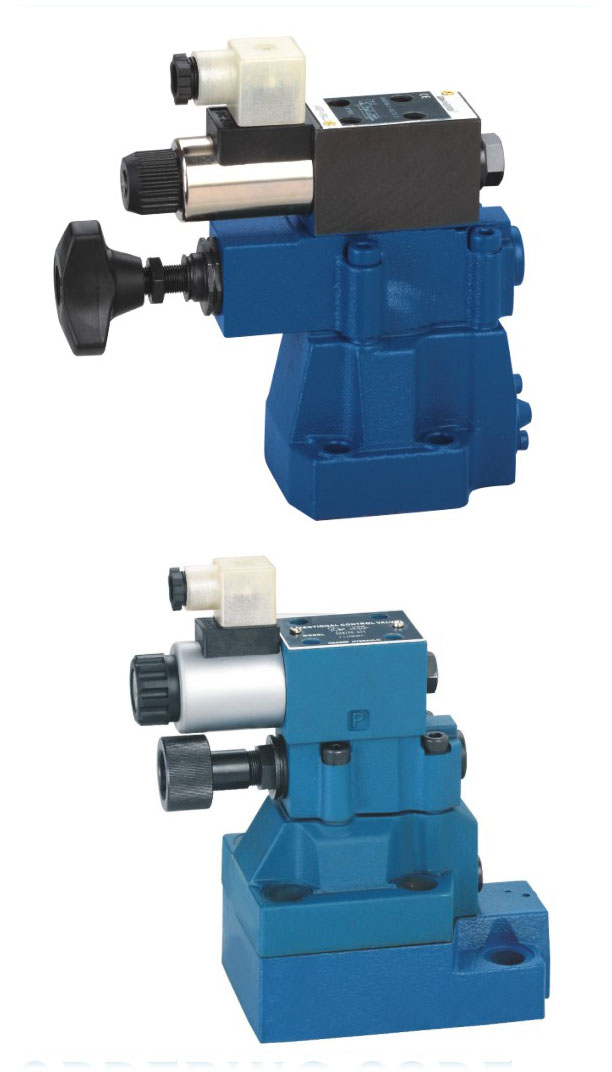

  • Product picture.jpg

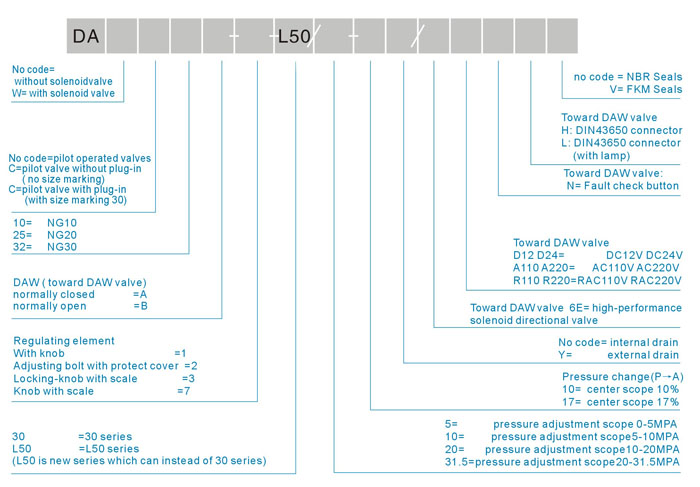

    Ordering details.jpg


    Technical data.jpg

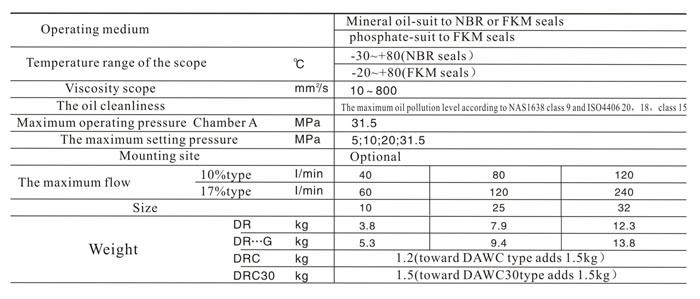

    DA-30, DAW-30 Technical data

    DA, DAW-30 data.jpg

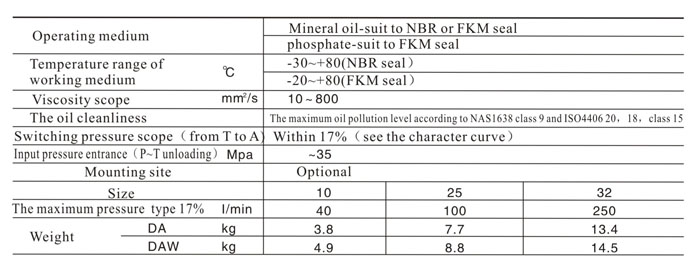

    DA-L50, DAW-L50 Technical data

    DA,DAW-L50 data.jpg

    Unit dimension.jpg

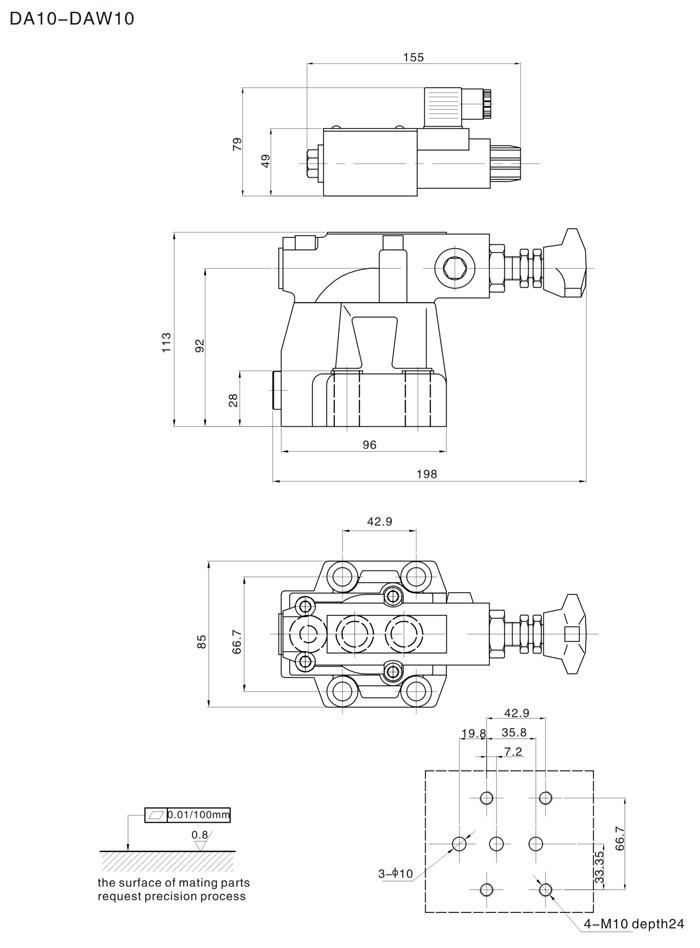

    DA10-30 series / DAW10-30 series

    DA10,DAW10-30 dimension.jpg

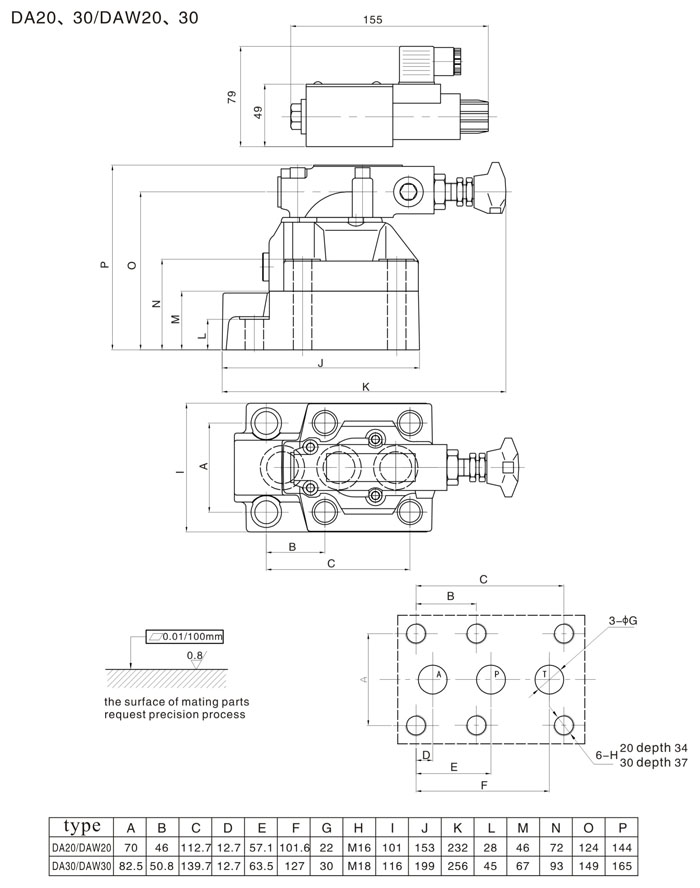

    DA20、30-30 series / DAW20、30-30 series

    DA20 30,DAW20 30- 30 dimension.jpg

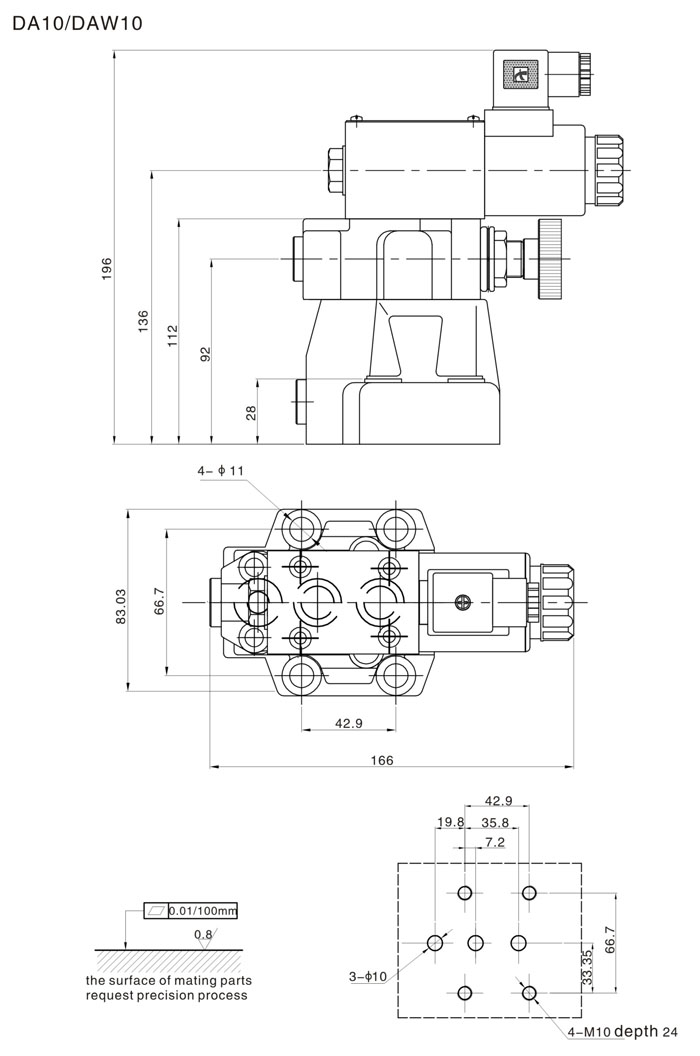

    DA10-L50 series / DAW10-L50 series

    DA10,DAW10-L50 dimension.jpg

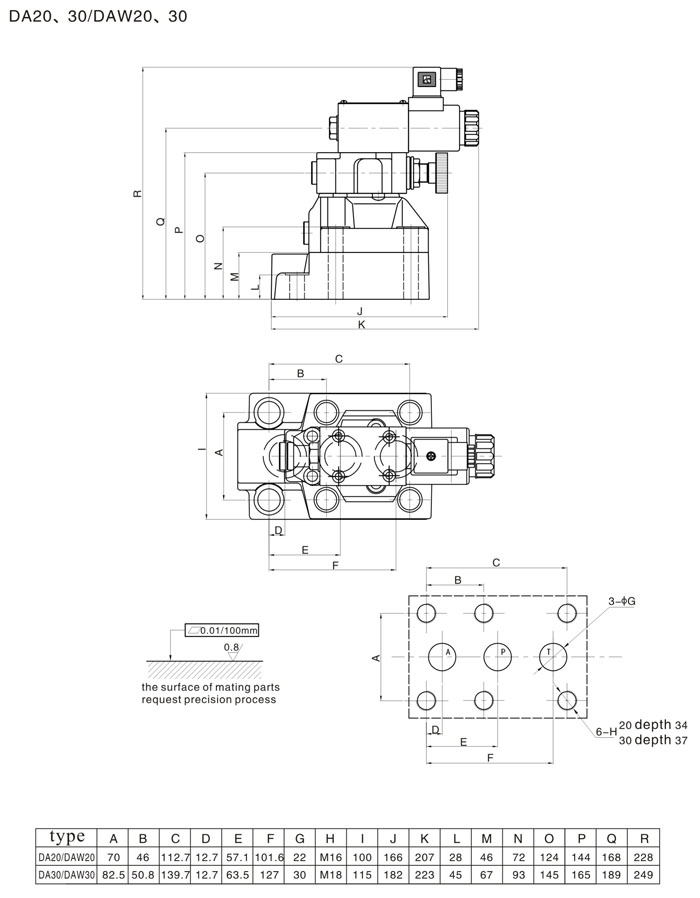

    DA20、30-L50 series / DAW20、30-L50 series

    DA20 30,DAW20 30-L50 dimension.jpg

  •
