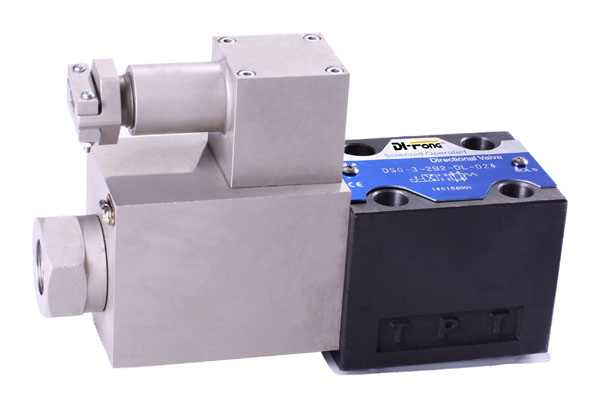

EXDSG Series Explosion Isolation Proportional Directional Control Valve
- EXDSG series explosion isolation proportional directional control valve
- description
- Product Image
- Feedback
EX
DSG
02
2B2
D24
H
Explosion valve
Directional valve
size :
02
03
Spool type
Rated flow
D12=DC12V
D24=DC24V
Omit :without emergency push rod
N9: with emergency push rod
Specification
02
03
Max. working pressure (MPa)
Oil ports P,A,B
31.5
Oil ports T
10
Working fluid
Mineral oil;phosphate-ester
Fluid temp. (℃)
-20-70
Viscosity (mm2/s)
2.8-380
Hysteresis (%)
<5
Repeatability (%)
<2
Working voltage (V)
DC24
Rated current (mA)
750
1500
Rated current (mA)
750
1500
Insulation grade
IP55
Cleanliness
The maximum allowable cleanliness of the oil Cleanliness should be according to 9th degree of Standard NAS1638.lt is suggested that the minimum filter rating should be β10≥75.
