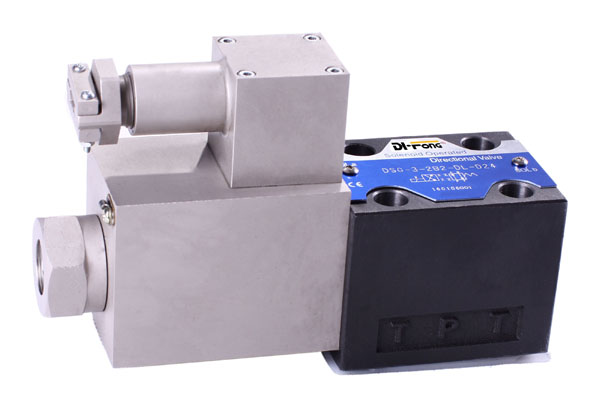

Explosion valve

Directional valve

 size :

02

03

Spool type

Rated flow

D12=DC12V

D24=DC24V

Omit :without emergency push rod

N9: with emergency push rod

Max. working pressure (MPa)

Oil ports P,A,B

31.5

Oil ports T

10

Working fluid

Mineral oil;phosphate-ester

Fluid temp. (℃)

-20-70

Viscosity (mm2/s)

2.8-380

Hysteresis (%)

<5

Repeatability (%)

<2

Working voltage (V)

DC24

Rated current (mA)

750

1500

Rated current (mA)

750

1500

Insulation grade

IP55

Cleanliness

The maximum allowable cleanliness of the oil   Cleanliness should be according to 9th degree of Standard NAS1638.lt is   suggested that the minimum filter rating should be β10≥75.
